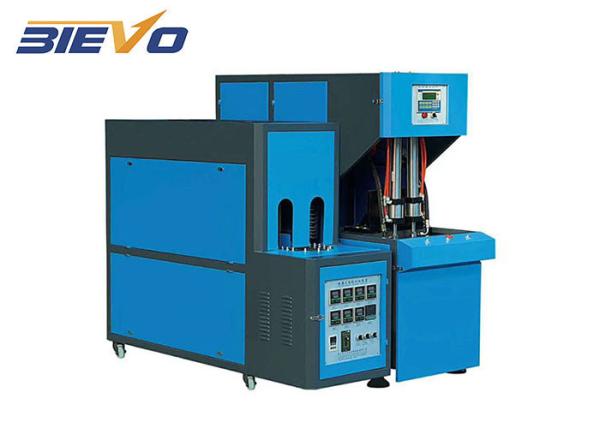

2 Cavities Semi Automatic PET Plastic Bottle Making Blowing Machine
Price
Features of main body:
BL-880 Semi-auto Plastic Bottle PET Blowing Making Machine
Features of main body:
1). This machine is characterized by Low cost, high efficiency and
its easy operation and maintenance as well as its stable
performance with advanced PLC.
2). Preform self-rotation and infrared preheater revolution assure
the even distribution of heat, which improve the bottle shaping
rate, increase the production.
3). High adjusting performance to enable preheat the preforms
perfectly by adjust the voltage control area in the PLC, which
could adjust the temperature of the infrared lights in the
preheater, and keep the proper temperature and humidity invariable.
4). High safeties with security automatic-locking device in each
mechanical action, which will make the production into a perfect
safe environment, in case of the breakdown in certain procedure.
5). Introduce the FESTO air cylinder to avoid contamination and
noise.
6). Satisfaction with different atmospheric pressure for blowing
and mechanical action by dividing the blowing and action into three
parts in the air pressure diagram of the machine.
7). Strong clamping force with high pressure and double crank links
to lock the mould.
8). Safe, reliable and unique design of the position of valve to
make the pneumatic diagram in the machine easier to understand.
9). Ideal cooling system makes the finished bottles without any
flaws.
10). Low rejection rate: less than 0.2 percent
1. Machine Power: 8 KW
2. Theoretical Output: 800-1000 BPH
3. Suitable Bottle: Mineral Water Bottle, Beverage Bottle, Medicine
Bottle.
4. Blower Size: 1450*590*1650 (MM)
5. Oven Size: 1680*610*1450 (MM)
6. The Weight Of Blower And Oven: 1000(KG)
Technical Partments:
Model | BG-1000B Semi Automatic Manual 2 Cavities PET Bottle Blow Molding /
Moulding Machine |
Theoretical output | 800-1000 pcs/h |
| Max. bottle volume | 2 Liters |
| | Max. neck diameter | 250 mm |
Finished bottle | Max. bottle diameter | 350mm |
| | Max. bottle height | 380mm |
| | Cavity | 28mm-95mm neck size with 2 cavity |
Mold specifications | Cavity | 95mm-250mm neck size with 1 cavity |
| | Mold thickness | 110mm-400mm |
| | Open stroke | 420 mm |
| Power voltage | 380v/3Phase/50HZ |
Installation power | 14kw |
Actual power consumption | 5-8 kw |
Air source | Recommend air compressor | 1.2m³/min 30Kg |
Cooling water | Recommend water chiller | 5HP |
| Length*width*height/weight | 1450*590*1650mm/650kg |
Oven size | Length*width*height/weight | 1680*610*1450mm/350kg |
Zhangjiagang City Bievo Machinery Co., Ltd. is located in a
national level development zone - Zhangjiagang Economic And
Technology Development Zone, covering area more than 8,000 square
meters.We enjoy convenient transportation with Shanghai Hongqiao
International Airport and Shanghai Pudong International Airport on
hand.Which accumulated a great number of China's top technologists
in the liquid beverage industry.We have complete system from
designing, manufacturing, installation, training to after
service.Our main product water production line, carbonated beverage
production line . Fruit juice and milk production line ,3 to 5
gallons production line, daily chemical production line and so
on.Plat and tube UHT device, CIP system.All the products are sold
well.We devote ourselves to the development, research and
production of liquid food and beverage filling and packing industry
.
Q1: Where is your factory? How can I visit there?
A1: Our location is No.66, Baixiong Road, Sanxing Town,
Zhangjiagang City, Jiangsu Province, China
Our factory is nearby from Shanghai City, if you fly from abroad,
we can pick you up at the airport.
Q2: What's your payment stipulation?
A2: Our standard payment is 30% of the total amount for deposit,
pay the balance before the shippment. For the others,
we can further discuss.
Q3: Do you have technicians for installation?
A3: We are responsible for the installaion in your country, you can
also arange your staffs to our factory to learn how to operate the
complete line.
<1>Installation, debug
After equipment reached the workshop of customer, place the
equipment according to plane layout we offered. We will arrange
seasoned technician for equipment installation, debug and test
production at the same time make the equipment reach the rated
producing capacity of the line. The buyer need to supply the round
tickets and accommodation of our engineer, and the salary.
<2>Training
Our company offer technology training to customer. The content of
training is structure and maintenance of equipment, control and
operation of equipment. Seasoned technician will guide and
establish training outline. After training, the technician of buyer
could master the operation and maintenance, could adjust the
process and treat different failures.
<3>Quality guarantee
We promise that our goods are all new and not used. They're made of
suitable material, adopt new design. The quality, specification and
function all meet the demand of contract. We promise that the
products of this line could storage for one year without adding any
aseptic.
